PFI-P435 Thermal imaging monocular
Catalogue index: PIX000028
- Availability: On demand
- Delivery time: The product is imported individually. The time and feasibility of implementation require confirmation. Indicative price, subject to change.
- Delivery: from US$0.00 (Wysyłka kurierem InPost)
- Self pickup: free
Description
Hassle-free operation
Clear knobs and optimally designed buttons. One touch for your needs, no accidental touches.

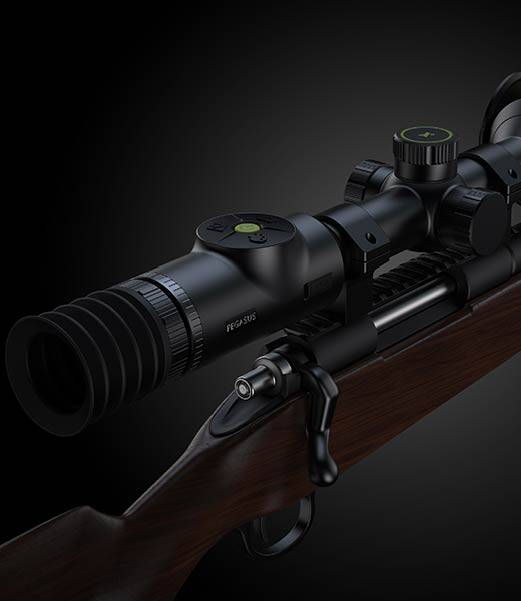

Familiar, yet improved user experience
With a 30mm tube diameter and lower mounting position, it adapts seamlessly to existing habits.
Improved image quality
The FHD OLED display combined with a high-magnification eyepiece and PIPS technology provides vivid, clear target imaging with a low latency of 20ms.

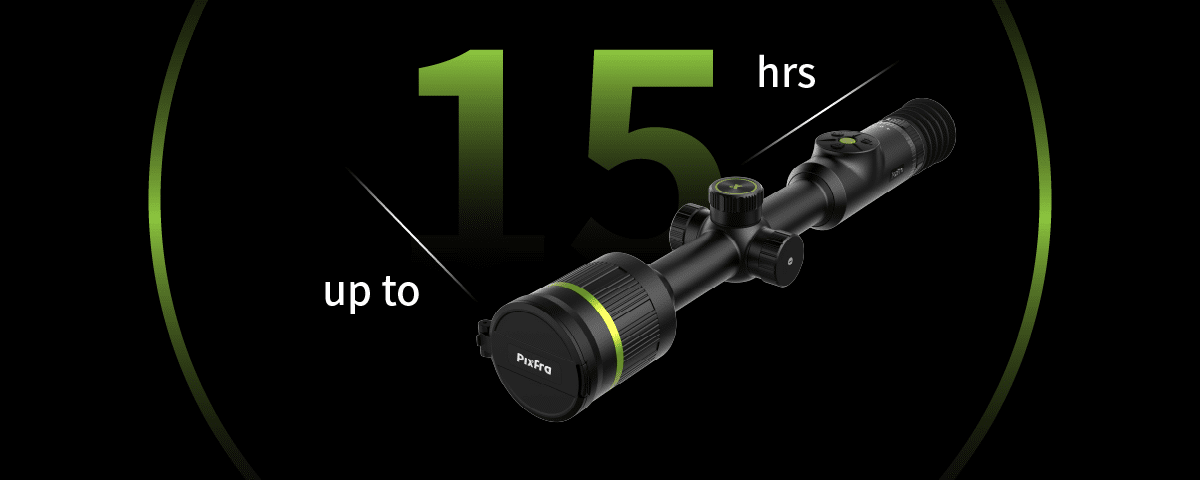

Longer battery life
Powered by a 6400mAh battery, it allows for up to 15 hours of continuous use, meeting your all-day outdoor needs.
Recording everything in every dimension
Video and audio recording with re-activation with built-in 64GB storage memory.
Exceptional detection capability
Equipped with a 12μm detector and a maximum 50mm F1.0 lens, capable of detecting targets up to 2600 meters away.

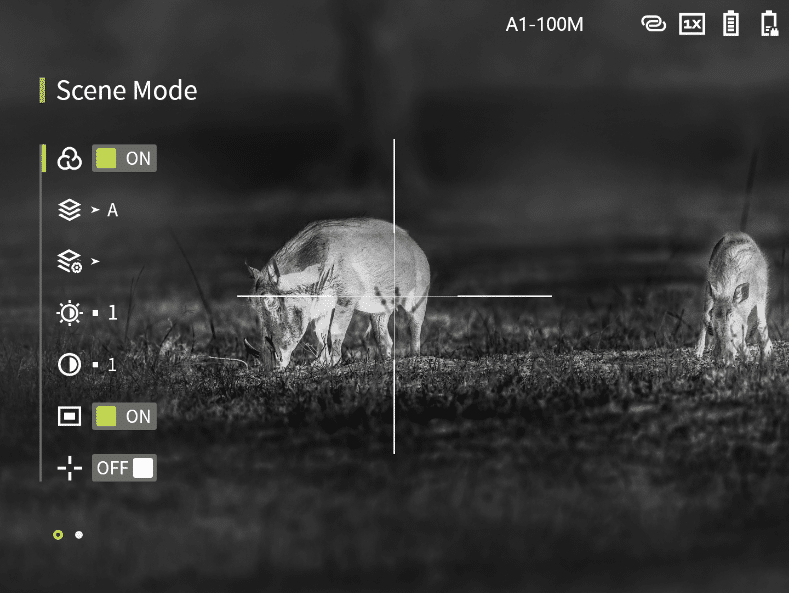

Refreshed user interface
Completely revamped user interface for a more user-friendly, aesthetically pleasing and functionally concise layout.
Product Specifications
| Model: PFI-P435 | |
|---|---|
| Detector type | Vanadium oxide uncooled focal plane detector |
| Effective pixels | 384 (H) × 288 (V) |
| Pixel height | 12 μm |
| Spectrum range | 8μm–14μm |
| Sensitivity (NETD) | ≤30mK@f/1.0 |
| Frame rate | 50Hz |
| Length of the fire | 35mm |
| Field of view@100m | 13.2m x 9.9m |
| Focus control | Manual |
| Close focus distance | 3m (9.8ft) |
| Stop | F1.0 |
| Detection distance | 1800m |
| Magnification | 3.19× |
| Size | 0.41 inch, OLED |
| Resolution | 1440 (H) × 1080 (V) |
| Diopter | -3D to +5D |
| Eye Enhancement | 50mm (1.97") |
| Color palettes | 6 (white hot/black hot/iron red/alarm/emerald/amber) |
| Digital zoom | 1×; 2×; 4×; 8× |
| Reticula | Multiple Patterns & Color Options |
| Zeroing | Car; manual |
| Video recorder | Yes |
| Snapshot | Yes |
| Wi-Fi hotspot | Yes |
| Hot Spot Path | Yes |
| Distance Measurement Video | Yes |
| FFC Calibration | Auto; manual; immediately |
| Standby mode | Yes |
| PIP (Picture in Picture) | Yes |
| DPC (defective pixel correction) | Yes |
| RAR (Recoil Activated Recorder) | Yes |
| MIC | Yes |
| Storage | Built-in 64 GB |
| Power supply | 5VDC/2A, Type-C |
| Battery type | Two rechargeable Lithium batteries (internal) and one replaceable CR123A (external) |
| Battery capacity | 6,400mAh (internal) |
| Overvoltage protection | Yes |
| Standby time | ≥15 hours |
| Operating temperature | -30 °C to +50 °C (-22 °F to +122 °F) |
| Working humidity | ≤95% |
| Storage temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Security | IP67 |
| Dimensions | 408mm × 78mm × 62mm (13.38" × 2.56" × 2.03") (L × W × H) |
| Package dimensions | 495 mm × 154 mm × 132 mm (19.45" × 6.06" × 5.19") (L × W × H) |
| Net weight | ≤855g (1.88lb) |
| Gross weight | ≤2.8kg (6.17lbs) |
